PL-LRF178 12V IP68 Vinyl Liner LED Pool Light – 18W / 25W / 35W
PL-LRF178 Vinyl Liner LED Pool Light
A 178mm IP68 underwater LED light designed for vinyl liner swimming pools. Available in 18W, 25W and 35W with RGB or single-color lighting.
| Model | PL-LRF178 |
| Power | 18W / 25W / 35W |
| Voltage | 12V |
| Color | RGB / Single Color |
| Waterproof | IP68 |
| Size | Diameter 178mm |
| Warranty | 2 Years |
Share it :
Product Details

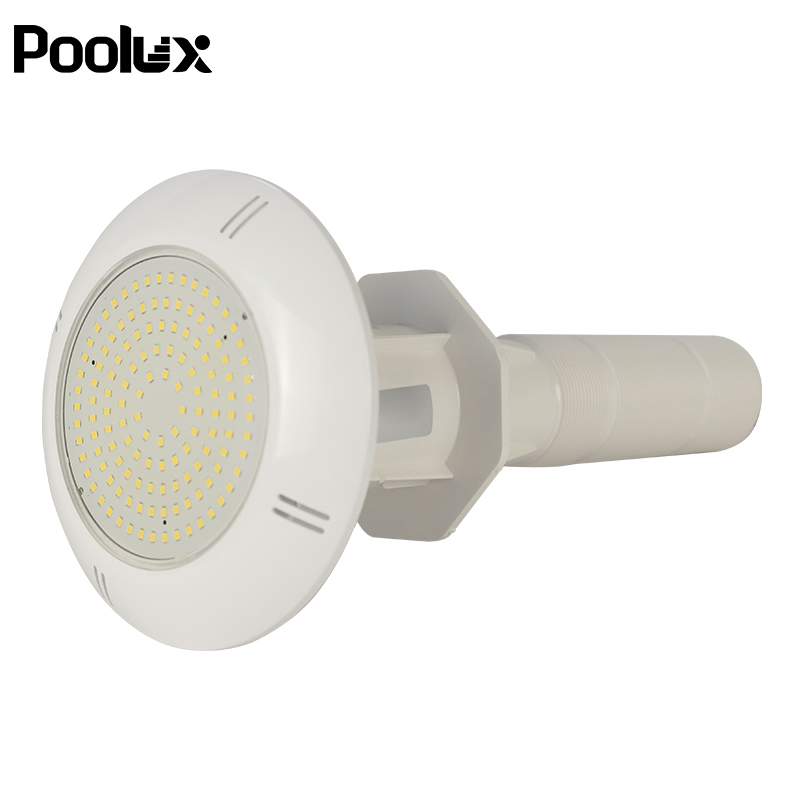

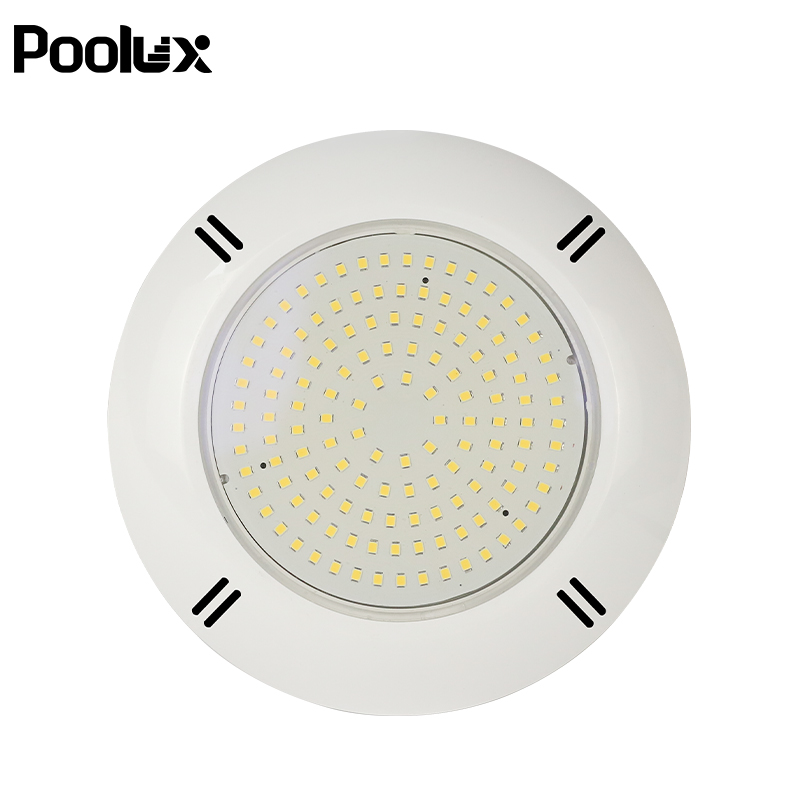

PL-LRF178 178mm IP68 Vinyl Liner LED Pool Light is a 12V underwater lighting solution designed for vinyl liner swimming pools. The light features a PC body, a 178mm round lamp head and a dedicated long wall-fitting structure for integration into the pool wall. Power options include 18W, 25W and 35W, with RGB or single-color lighting configurations and a 120° beam angle for broad underwater illumination. Supplied with a standard 2m cable, this model is suitable for residential pools, hotel and resort projects, commercial swimming pools, pool renovation work and B2B distribution.
IP68 Waterproof Protection
Designed for permanent underwater pool lighting applications.
12V Pool Lighting System
Suitable for integration with compatible 12V pool lighting projects.
Multiple Power Options
Choose from 18W, 25W and 35W for different pool lighting layouts.
RGB or Single Color
Supports decorative color effects or focused single-color illumination.
Vinyl Liner Pool Design
Dedicated lamp and wall-fitting structure for vinyl liner pool projects.
2-Year Warranty
Suitable for wholesalers, contractors, importers and project purchasers.
Product Introduction
The PL-LRF178 is an LED underwater pool light developed for vinyl liner swimming pools. Its round 178mm lamp head combines with a long wall-fitting body that can be incorporated into the pool wall structure. This configuration allows the visible lamp head and the installation body to work as one integrated lighting system.
With 18W, 25W and 35W power options, the product can be selected according to the required lighting coverage and project layout. A 120° beam angle distributes light across a wide area of the pool, while RGB and single-color versions support both decorative and functional underwater lighting. The IP68 waterproof rating makes the light suitable for continuous underwater use in residential and commercial swimming pool projects.
Key Features
- Vinyl liner pool application: Designed specifically for installation in vinyl liner swimming pool projects.
- PC construction: The lamp body and visible front structure use PC material.
- Three power choices: Available in 18W, 25W and 35W configurations.
- 12V input: Suitable for compatible low-voltage swimming pool lighting systems.
- Wide light distribution: The 120° beam angle supports broad underwater illumination.
- Lighting choices: RGB versions are suitable for decorative effects, while single-color versions provide consistent illumination.
- IP68 waterproof rating: Developed for underwater swimming pool lighting applications.
- Standard cable: Supplied with a standard 2m cable for project installation.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Vinyl Liner LED Pool Light |
| Model | PL-LRF178 |
| Product Type | Underwater Swimming Pool Light |
| Material | PC |
| Power Options | 18W / 25W / 35W |
| Input Voltage | 12V |
| Beam Angle | 120° |
| Color Options | RGB / Single Color |
| Waterproof Rating | IP68 |
| Product Size | Diameter 178mm |
| Cable | Standard 2m Cable |
| Installation Application | Vinyl Liner Swimming Pools |
| Certification | CE |
| Warranty | 2 Years |
Product Design and Configuration

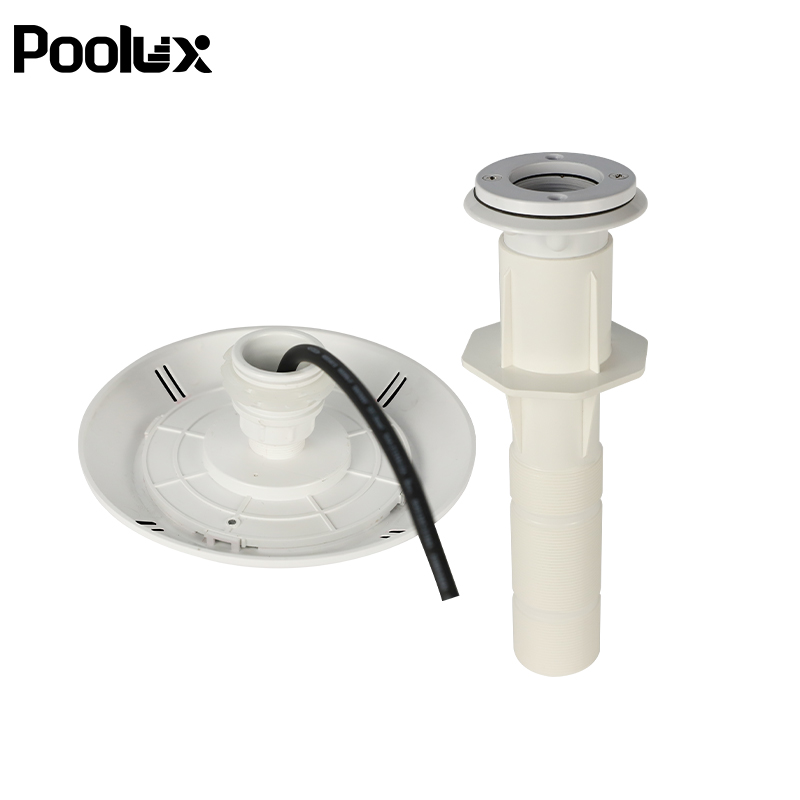

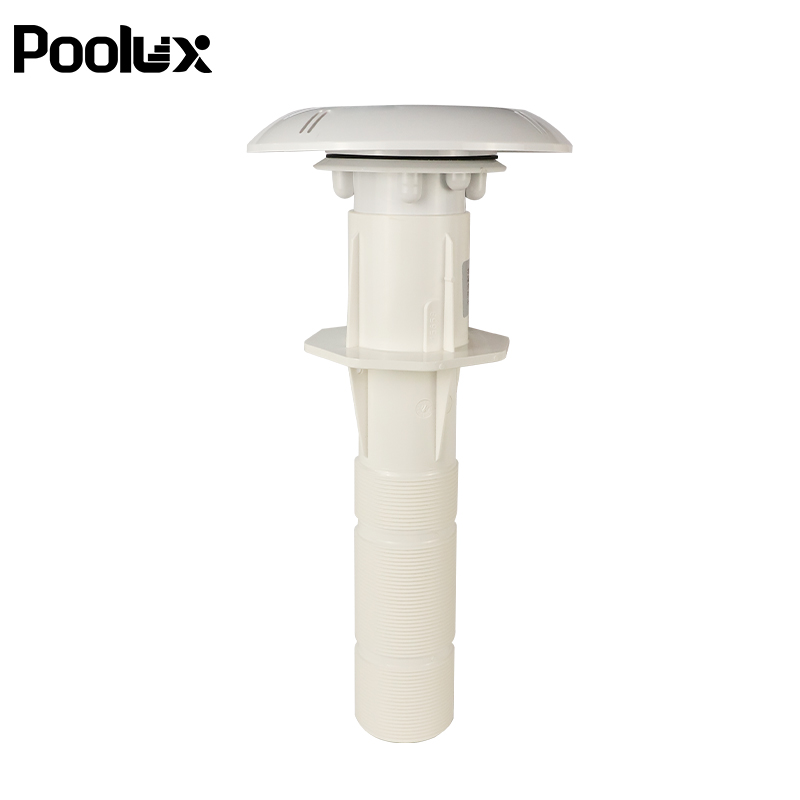

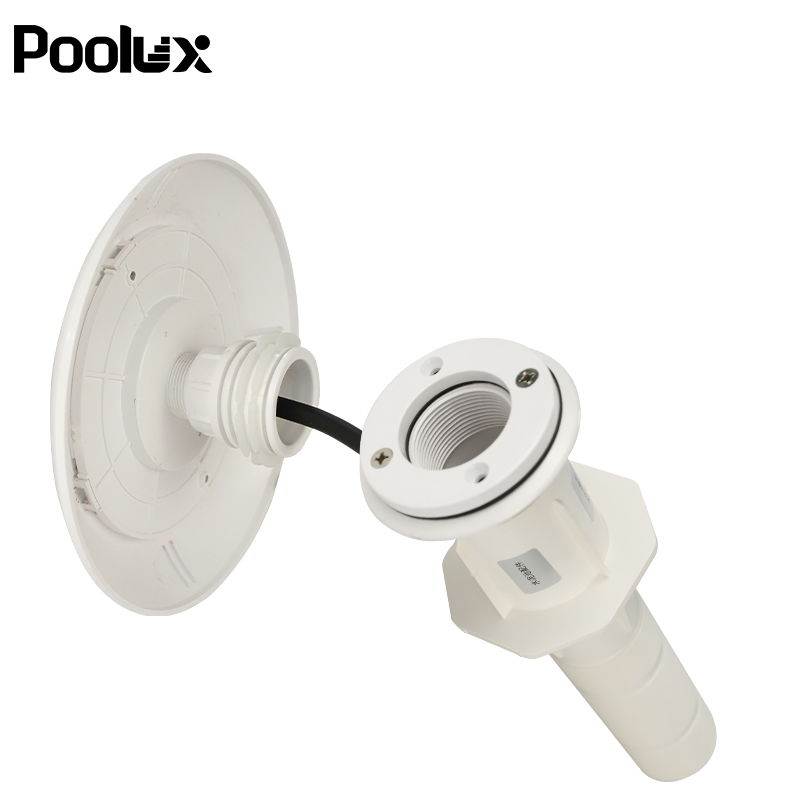

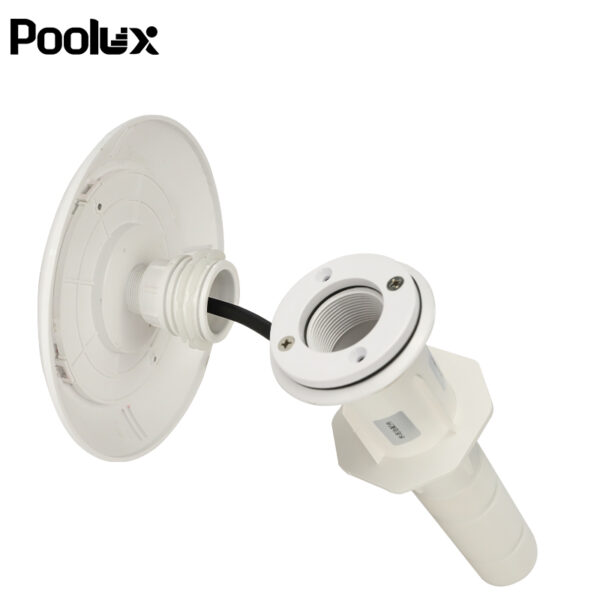

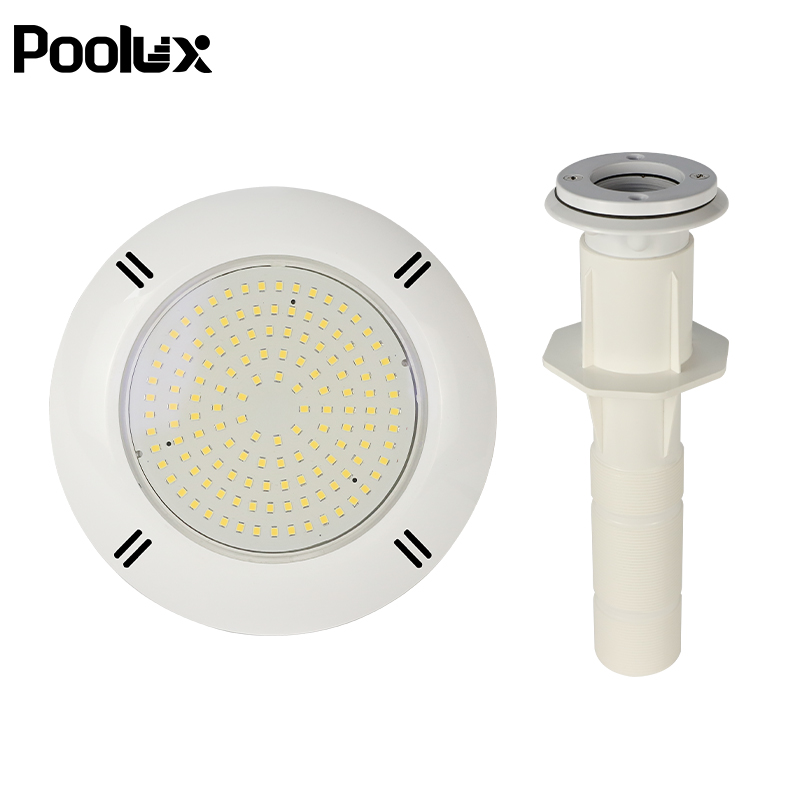

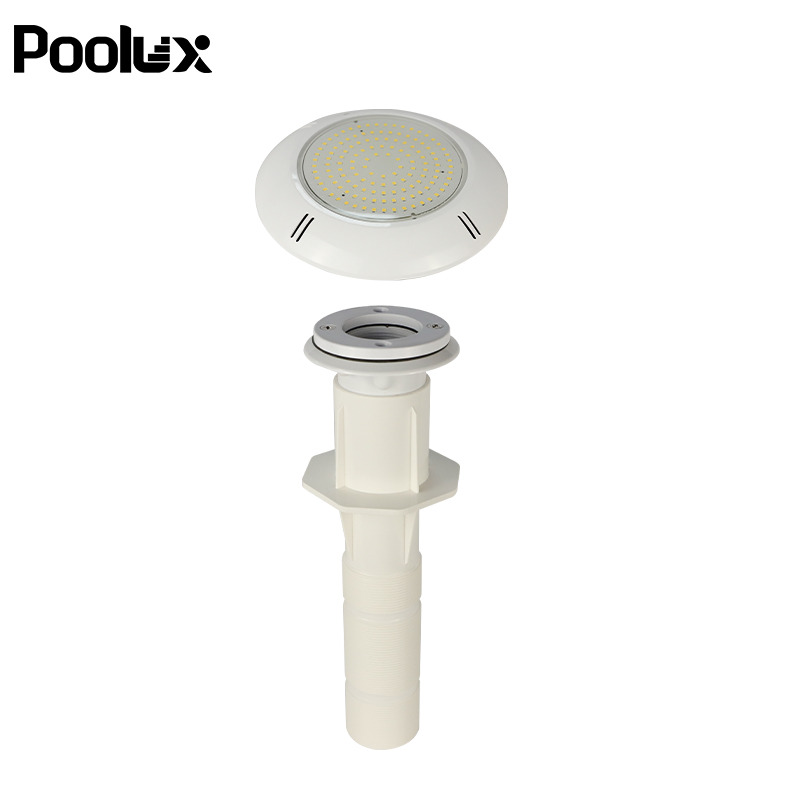

The product consists of a round LED lamp head and a separate long wall-fitting body. This configuration supports installation within a vinyl liner pool wall while keeping the visible lighting surface positioned toward the pool interior. The detachable structure also allows the lamp head and installation body to be handled as separate components during pool construction and product assembly.
Application Scenarios
Installation and Usage Advantages
The PL-LRF178 is designed around a separate lamp head and wall-fitting body. The long fitting can be integrated into the vinyl liner pool wall structure, while the round lamp head forms the visible underwater lighting surface. This configuration is suitable for pool construction projects where the lighting body must coordinate with the pool wall and liner system.
- Match the selected 18W, 25W or 35W version with a compatible 12V pool lighting system.
- Plan the wall-fitting position before completing the vinyl liner pool wall.
- Use the standard 2m cable when arranging the project cable route.
- Installation and electrical connection should be completed by qualified pool or electrical personnel.
- Confirm the required RGB or single-color version before ordering for a project.
Why Choose This Pool Light
Dedicated Vinyl Liner Structure: The lamp head and long wall fitting are designed for vinyl liner pool installation.
Flexible Power Selection: Three power options support different lighting layouts and pool sizes.
Broad Light Distribution: The 120° beam angle supports wide underwater illumination.
Color Project Options: Select RGB for decorative effects or a single-color version for consistent lighting.
B2B Project Supply: Suitable for swimming pool contractors, importers, wholesalers and project purchasers.
Factory-Direct B2B Supply
Poolux supports wholesale and project purchasing for swimming pool distributors, contractors, importers, engineering companies, hotel projects, resort projects and commercial aquatic facilities. Buyers can request factory-direct quotations based on the selected power, color configuration and order quantity.
B2B support can include product photographs, specification documents, export packing coordination, mixed swimming pool product purchasing and international shipment coordination. Project buyers should provide the required quantity, power option, color version and destination so the quotation can be prepared accurately.
Why Choose Poolux
Poolux is a swimming pool product supplier located in Shenzhen, China. The product range covers swimming pool lighting, fountain lighting, pumps, filtration equipment, pool ladders, starting blocks, lane lines, cleaning equipment and other swimming pool accessories.
Poolux works with wholesalers, distributors, importers, swimming pool contractors, engineering companies and commercial project buyers. Services include factory-direct supply, wholesale quotations, distributor orders, project purchasing, mixed product orders, export packing, technical documents, product photographs and international shipping coordination.
Frequently Asked Questions
What power options are available for the PL-LRF178 pool light?
The available power options are 18W, 25W and 35W.
What input voltage does this vinyl liner pool light use?
The PL-LRF178 uses a 12V input.
Is this light suitable for underwater pool installation?
Yes. The product has an IP68 waterproof rating and is designed as an underwater swimming pool light.
What color options are offered?
The product is offered in RGB or single-color configurations.
What is the beam angle?
The beam angle is 120° for broad underwater light distribution.
What is the diameter of the lamp head?
The product diameter is 178mm.
What cable length is supplied?
The standard cable length is 2m.
Does the product have certification and warranty coverage?
The product has CE certification and is supplied with a 2-year warranty.
Can Poolux support wholesale and project orders?
Yes. Poolux supports distributors, importers, swimming pool contractors and commercial project purchasers.
